When it comes to silicone part manufacturing, choosing the right molding process is crucial for achieving optimal performance, cost efficiency, and design precision. Liquid Silicone Rubber (LSR) and High Consistency Rubber (HCR) are two of the most widely used materials in injection molding, each offering distinct advantages and challenges. Understanding the key differences between LSR and HCR injection molding can help manufacturers make informed decisions, ensuring that the chosen method aligns with the specific needs of the application.
What is LSR Injection Molding?
LSR injection molding is a highly efficient process that involves two primary components: a base material and a catalyst. Typically, the catalyst is a platinum-based curing agent, which triggers a chemical reaction that vulcanizes the liquid silicone rubber into a solid form. This method is often referred to as “addition curing” because the curing agent combines with the silicone during the molding process, producing minimal byproducts, such as volatile organic compounds (VOCs).
One of the standout features of LSR injection molding is its streamlined curing process. Unlike HCR, LSR doesn’t require extensive post-curing to remove residual byproducts, which significantly reduces production time and costs. This makes LSR an ideal choice for high-volume production runs where speed and precision are critical. While post-curing may be used in specific applications to enhance or stabilize certain properties—such as in the medical or aerospace industries—it is typically not necessary for most standard applications.
Key Advantages of LSR Injection Molding:
– Reduced byproduct generation: LSR injection molding generates minimal VOCs, eliminating the need for extensive post-curing processes.
– Fast curing times: Compared to HCR, LSR cures faster, making it suitable for high-volume production.
– Precision molding: LSR’s low viscosity enables the creation of intricate and complex designs with tight tolerances.
– Automation-ready: The material’s homogeneous nature allows for automated production, reducing labor costs and ensuring consistency.
How Does the LSR Injection Molding Process Work?
The LSR injection molding process begins with the precise mixing of the base material and catalyst. This is typically done using a meter-mixing system, where pumps dispense and combine the components to create a uniform mixture. The combined material is then injected into a cooled section of the injection molding machine, preventing premature curing before the material enters the mold.

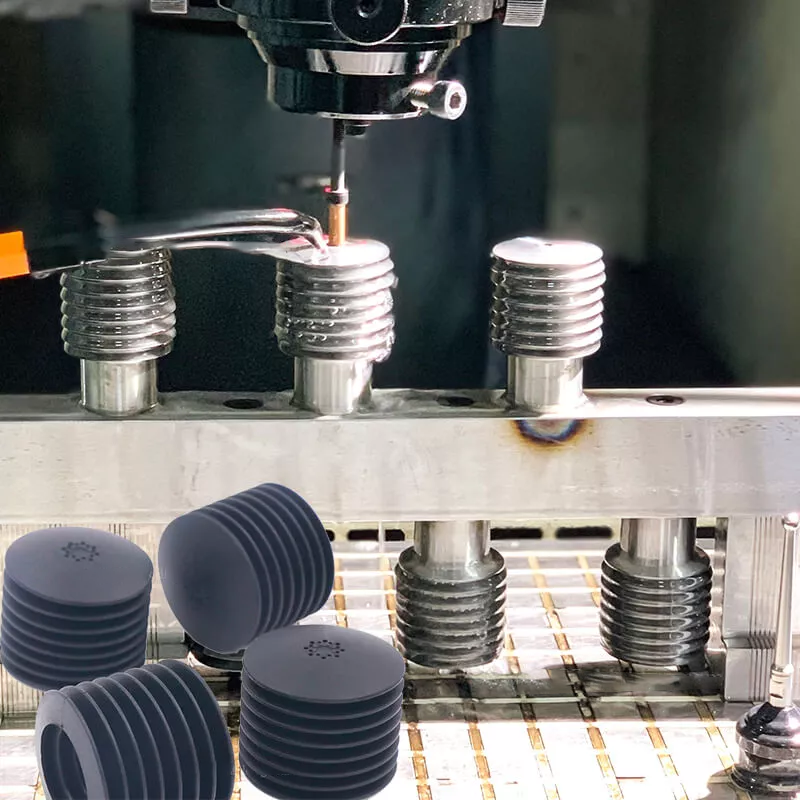

Once inside the mold, LSR’s low viscosity allows it to flow easily into intricate shapes, making it particularly suitable for detailed parts such as medical devices, wearable technology, and high-performance automotive components. While stainless steel molds are typically more expensive, they contribute to enhanced precision and reduced flash, minimizing the need for secondary processes like trimming.
Moreover, LSR injection molding supports sustainable manufacturing practices. The process produces little to no material waste, and its high level of automation reduces labor costs while improving consistency across production runs.
What is HCR Injection Molding?

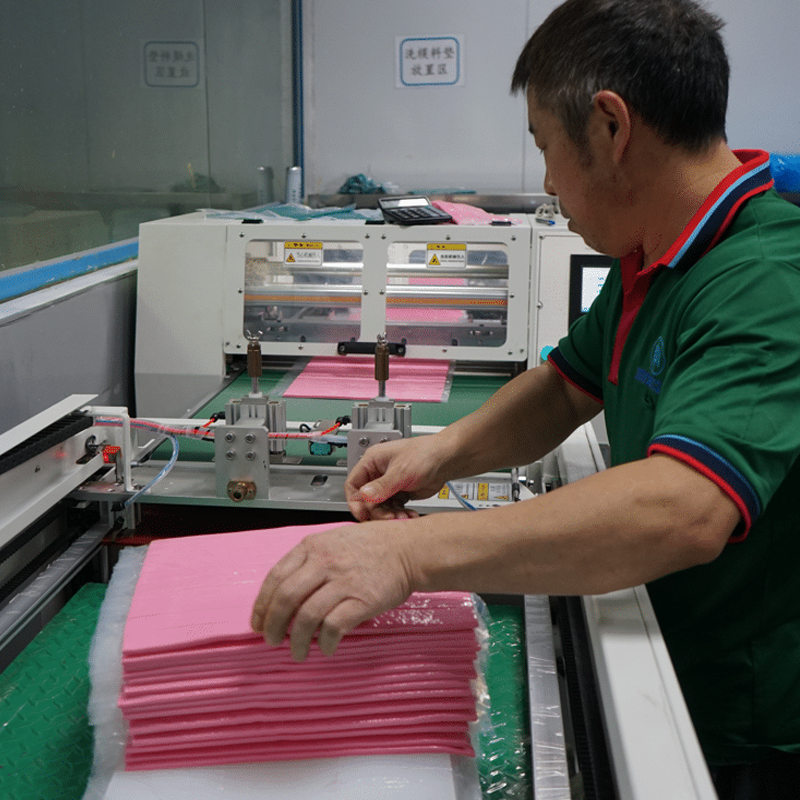

In contrast, High Consistency Rubber (HCR) is a pre-mixed material typically supplied in sheets, rolls, or partially vulcanized forms. HCR has a much higher viscosity than LSR, which means it is more challenging to process and requires more manual handling. HCR typically relies on peroxide-based curing systems, which introduce additional complexities and longer curing times compared to the platinum-based systems used in LSR.
The HCR injection molding process begins with feeding the rubber material into a heated barrel, where it is injected into a mold and vulcanized at high temperatures. Due to the higher viscosity of HCR, the molding process is less automated than LSR, and the finished parts often require additional finishing steps, such as trimming flash and post-curing to remove acidic residues from the curing process.
Key Features of HCR Injection Molding:
– Lower initial setup costs: HCR injection molding generally involves lower mold and equipment costs, making it an appealing option for budget-conscious projects.
– Ideal for simple designs: HCR is better suited for applications that require less intricate designs and lower production volumes.
– Longer curing times: HCR requires more time to cure, which can slow down production and introduce potential challenges in managing the curing process.
– Manual labor intensive: Due to the higher viscosity of HCR, manual intervention is often necessary for loading, de-molding, and trimming, which increases labor costs and can introduce variability in product quality.
How Does the HCR Injection Molding Process Work?
The HCR injection molding process typically uses peroxide curing, which creates acidic byproducts during vulcanization. These acidic residues can lead to surface bloom, a white powdery substance on finished parts. Post-curing in industrial ovens can be used to remove these residues, but this step adds additional time and cost to the production process.
During the molding phase, HCR is injected into a heated mold, where it undergoes vulcanization at elevated temperatures. The molding process requires precise control over factors like mold temperature, part thickness, and heat transfer to achieve the desired properties and performance of the finished part. However, if parts are removed from the mold before they are fully cured, residues can remain, negatively affecting the appearance and functionality of the parts.
Furthermore, the need for manual processes—such as part removal and trimming—makes HCR less suitable for high-volume or precision applications where consistency and speed are essential.
LSR vs. HCR: Key Differences
When choosing between LSR and HCR injection molding, it is essential to consider the specific requirements of the application. Below is a comparison of both processes based on key features:
| Feature | LSR Injection Molding | HCR Injection Molding |
| Curing System | Platinum-based (addition curing) | Peroxide-based |
| Byproduct Removal | Minimal; typically no post-curing required | Acids require post-curing to remove residues |
| Material Properties | Low viscosity for complex, detailed molds | High viscosity; better for simpler designs |
| Labor Requirements | Highly automated, minimal manual intervention | Manual loading, de-molding, and trimming required |
| Applications | Medical devices, electronics, precision components | Simpler parts like silicone tubing and gaskets |
Which Molding Method Should You Choose?
The choice between LSR and HCR injection molding largely depends on your project’s specific requirements, including production volume, design complexity, and cost constraints.
– Choose LSR Injection Molding if you need:
– Complex geometries: LSR is perfect for intricate designs with tight tolerances.
– High-volume production: The fast curing times and automated process make LSR ideal for large-scale manufacturing.
– Cost efficiency: Reduced material waste and automation help lower labor costs and improve consistency across large production runs.
– Compliance with stringent standards: LSR is commonly used in industries such as medical, automotive, and electronics, where precision and compliance are crucial.
– Choose HCR Injection Molding if:
– Initial cost is a concern: HCR typically has lower upfront mold and equipment costs.
– Simplicity and low-volume production are priorities: HCR is better suited for less complex designs and lower-volume applications.
– Manual finishing is acceptable: If post-curing and manual labor for trimming and de-molding are not problematic, HCR can be a cost-effective option.
