Liquid Silicone Injection Molding (LSR) is an advanced manufacturing process used to produce high-precision, temperature-resistant components from liquid silicone rubber (LSR). This process is widely utilized across industries that demand durability, flexibility, and biocompatibility in their products—such as medical devices, automotive parts, electronics, and consumer goods. The process of silicone injection molding is highly efficient, with cycle times ranging from just 2 seconds to 2 minutes, depending on the complexity and size of the molded component. To ensure consistent quality and precision, the process is divided into four key stages: clamping, injection, cooling, and ejection. Each stage plays a vital role in shaping the final product.
-
Clamping

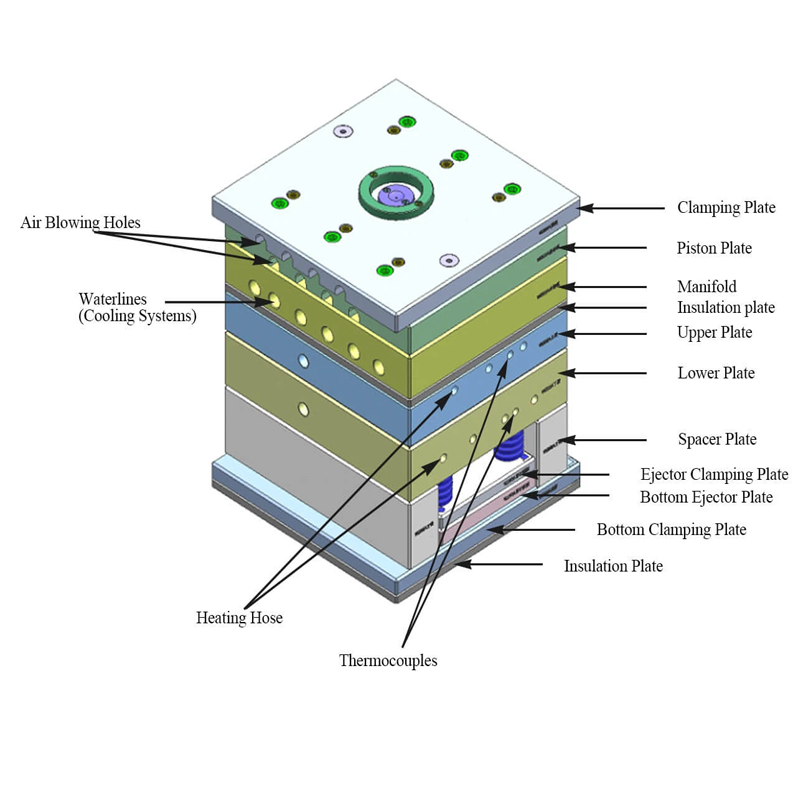

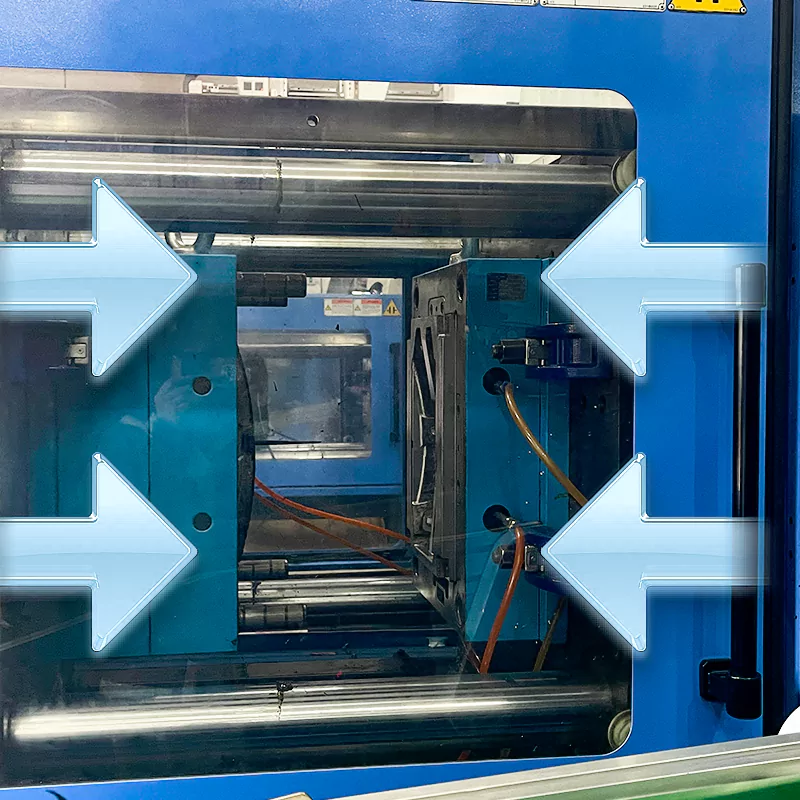

The first step in the silicone injection molding process is clamping. During this phase, the two halves of the mold are securely closed under high pressure. The mold must be tightly sealed to prevent any silicone material from leaking out during the injection phase. This stage is crucial to ensuring that the final product is formed with the highest accuracy.
In the case of liquid silicone molding, the molds are typically heated using either water circulating through the mold or electrical heaters. The heating system ensures that the silicone material cures at the appropriate temperature. Additionally, many LSR molds use a cold runner system, which helps maintain the right temperature in the runners (the channels through which the silicone flows before entering the mold cavity). By controlling the temperature in this area, manufacturers can avoid premature curing of the silicone before it reaches the mold cavity, ensuring a smoother and more consistent filling of the mold.
The mold itself can be designed to accommodate various product shapes, ranging from simple components to highly intricate, multi-part assemblies. Once the mold is clamped, the injection process begins.
-
Injection

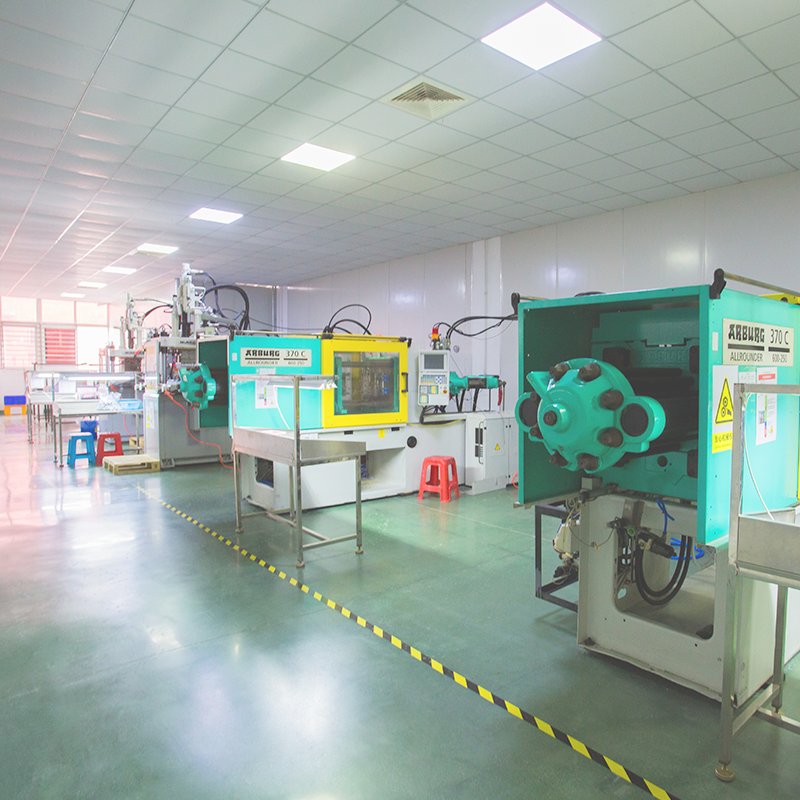

The second stage, injection, involves pumping the liquid silicone material into the mold under high pressure. In LSR molding, the silicone is typically a two-part system—Part A and Part B—which is mixed and then injected into the mold cavity. The silicone is pumped through pipelines and tubes that lead to the injection molding machine, where it is subjected to heat and pressure, transforming it into a molten state suitable for injection.
The amount of silicone injected into the mold is called the “shot,” and the goal is to fill 95-99% of the mold cavity with the material. During the injection process, the machine applies consistent pressure to ensure that the silicone flows smoothly into every area of the mold, including fine details and intricate features. This process ensures uniformity and minimizes the occurrence of defects such as air pockets or incomplete fills.
The injection phase is followed by a pressure preservation phase, where pressure is continuously maintained to ensure that the silicone completely fills the cavity and maintains uniform density. As the material fills the mold, the back pressure inside the cavity gradually increases, and the silicone begins to cool slightly, solidifying as it reaches the desired viscosity. This process is critical for the formation of precise, high-quality silicone components.
-
Cooling
Cooling is one of the most crucial stages in silicone injection molding, accounting for approximately 70-80% of the entire cycle time. Proper cooling not only ensures the final product retains its shape but also affects the efficiency and cost-effectiveness of the entire molding process. Silicone components need to cool gradually to avoid warping, distortion, or defects in the final part.
During the cooling phase, the molded part is exposed to a controlled cooling system. This system typically involves circulating coolant through channels in the mold to absorb heat from the silicone. A well-designed cooling system is essential for reducing cycle times, increasing production efficiency, and ensuring that the final product meets the required material properties.
The cooling time depends on various factors, such as the thickness of the silicone part, the complexity of the mold design, and the cooling system’s efficiency. If the cooling process is too quick, it can lead to uneven curing and the formation of defects. On the other hand, if the cooling time is too long, it can increase cycle times and raise production costs. Manufacturers must carefully balance the cooling process to achieve optimal results.
The controlled cooling process also helps maintain the integrity of the material’s mechanical properties. Silicone rubber is known for its high durability, temperature resistance, and flexibility, but these properties must be preserved during cooling to ensure the product performs as intended.
-
Ejection
Once the silicone has cooled and solidified, the final stage of the molding process—ejection—begins. Unlike traditional thermoplastic molding, Liquid Silicone Rubber (LSR) molding does not typically require the use of ejector pins. Instead, the silicone component is designed to be easily released from the mold by the mold’s opening mechanism.
At the end of the molding cycle, the mold is opened, and the finished part is ejected. In ideal conditions, the silicone component is designed to remain attached to one side of the mold, ensuring that it is stable and easy to remove when the mold halves separate. Additionally, the product may be designed with features that allow it to naturally rise above the parting line, making it easier to demold without causing any damage to the part.
The ejection phase also includes a final inspection to ensure that the part is free from defects, has no residual flash (excess material around the mold seams), and meets the required specifications. Any excess material may be trimmed away before the part is considered complete.
