When it comes to manufacturing precision Liquid Silicone Rubber (LSR) products, the quality of the mold or tooling is paramount. At Colosilicone, we understand that a well-constructed LSR mold forms the foundation of every superior silicone product. Whether you’re creating medical devices, baby products, automotive parts, or consumer goods, the key to success lies in a reliable and accurate molding process. But what goes into making a high-quality LSR mold or tooling? Let’s dive into the essential steps and factors involved in the process.
1. Part Design: The Foundation of a Quality Mold
The success of LSR injection molding starts long before the mold is made—during the part design phase. Part design is not only about aesthetics and functionality but also about ensuring manufacturability in the high-volume, precision-driven world of LSR molding. A well-designed product maximizes the benefits of the molding process, such as efficiency, cost-effectiveness, and consistent output.
Key considerations during the design phase include:
- Wall Thickness: Consistent wall thickness is critical to achieving uniform curing and reducing stress on the part during the molding process. Thinner walls often result in faster cooling times, but excessive thinning can lead to weak spots in the final product.
- Rib and Boss Design: Properly designed ribs help reinforce the part and maintain its structural integrity. Bosses, which are protrusions used for fastening, must be optimized for the injection process to prevent sink marks and ensure even material flow.
- Gate Placement and Vents: Proper gate location ensures the even filling of the mold cavity, while correct vent placement is crucial to avoid gas trapping and mold defects. Gates should be strategically placed in areas of the part that are least visible to prevent any issues in the final product’s appearance.
- Transition and Corner Design: Sharp transitions or corners in the part can disrupt material flow and create weak points. Gradual transitions and rounded corners reduce stress concentrations and improve the overall durability of the part.
At Colosilicone, we emphasize the importance of close collaboration with our clients during this stage. Our experienced design engineers use tools such as Mold Flow Analysis and Failure Mode and Effects Analysis (FMEA) to ensure optimal product design.

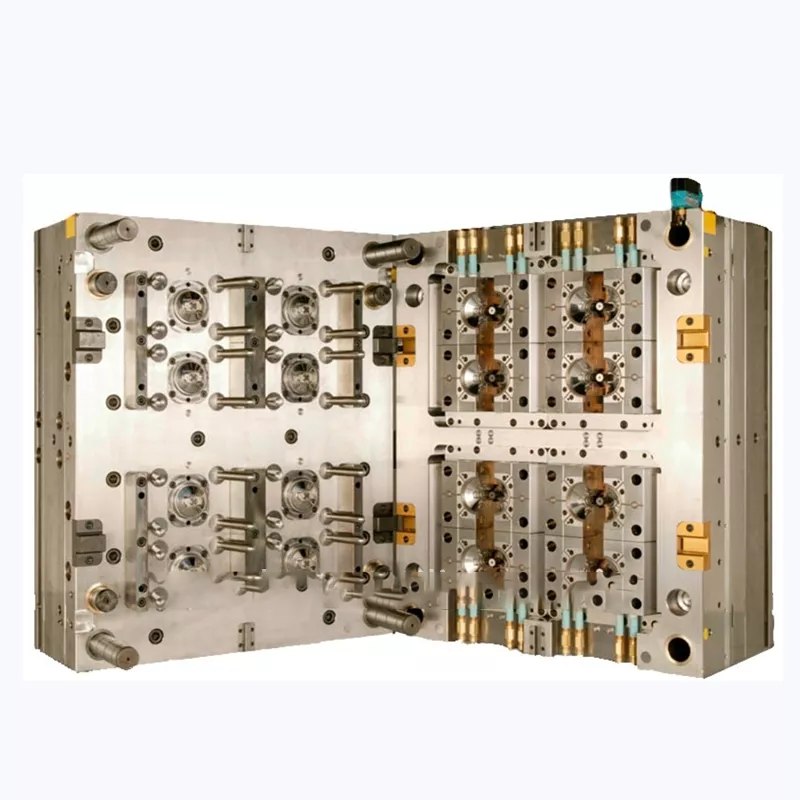

2. Tooling Design: Turning Ideas into Precision

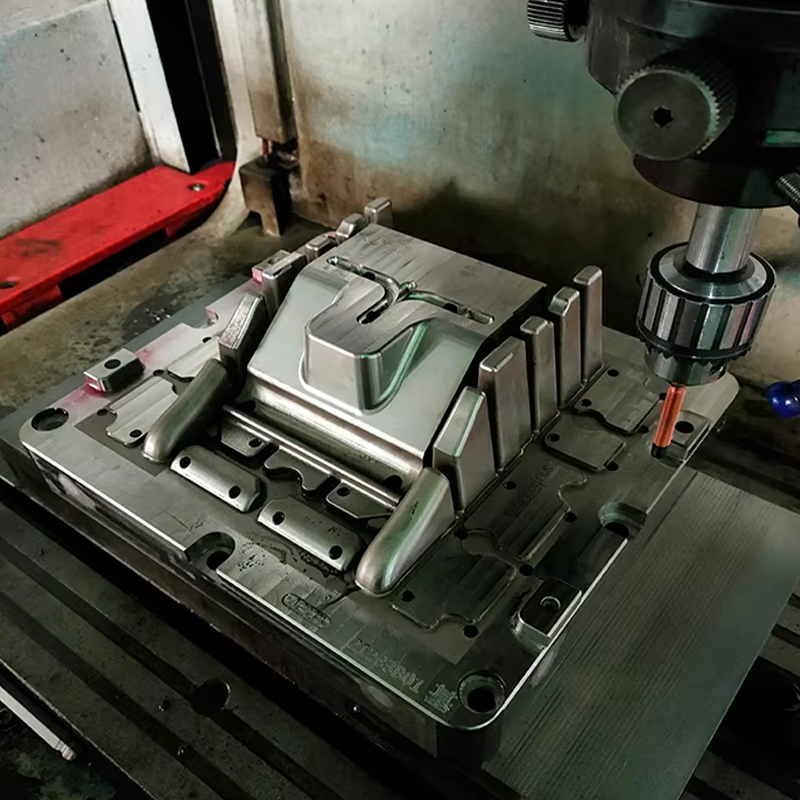

Once the part design is finalized, the next step is developing the tooling or molds. This step is critical for ensuring that your final product meets the required tolerances, performance standards, and aesthetic qualities. The tooling design must balance the need for precision with cost-effective manufacturing.
Several factors impact the tooling design, including:
- Mold Shrinkage: LSR experiences linear shrinkage of approximately 2-3% during the cooling process. Tooling designers must account for this shrinkage when designing the cavity to ensure the final product meets dimensional requirements. Prototype tooling may be used to simulate the production process and fine-tune the mold’s accuracy.
- Heating System: Consistent and precise heating of the mold is crucial for the proper curing of LSR. At Colosilicone, we use both resistance and induction heating methods, depending on the mold geometry, to ensure even heating and high-quality parts.
- Venting: Proper venting is essential in LSR molding, as its low viscosity causes high injection speeds, which can result in gas entrapment. Venting also prevents issues such as flashing, which can occur when the silicone material escapes the cavity during injection. We carefully design the vents to meet the specific needs of the product while minimizing the risk of defects.
3. Material Selection: The Key to Performance and Durability
Choosing the right LSR material is a crucial part of the process, as it directly affects the product’s durability, appearance, and functionality. At Colosilicone, we work closely with our clients to select the appropriate material based on factors such as:
- Temperature Resistance: Silicone materials can withstand extreme temperatures, ranging from -40°C to 250°C (-40°F to 482°F). Depending on the application, we may recommend a material with enhanced thermal stability to ensure reliable performance in environments with fluctuating temperatures.
- Chemical Resistance: LSR’s excellent resistance to chemicals makes it suitable for a wide range of industries, from food-grade products to medical devices. We consider potential exposure to oils, acids, and other chemicals when selecting materials to ensure the final product performs reliably over time.
- Durometer: The hardness of silicone, measured in Shore A, is a critical factor in product performance. At Colosilicone, we help our customers choose materials with a durometer ranging from 20 to 80 Shore A, depending on the flexibility and strength required for their application.
4. Manufacturing Process: Precision Injection Molding
The next step involves the actual molding process, where precision and efficiency are crucial. Liquid Silicone Rubber molding involves injecting liquid silicone into a mold cavity under controlled temperature and pressure. This process is highly automated to ensure repeatability and consistency. However, there are a few critical considerations for optimal results:

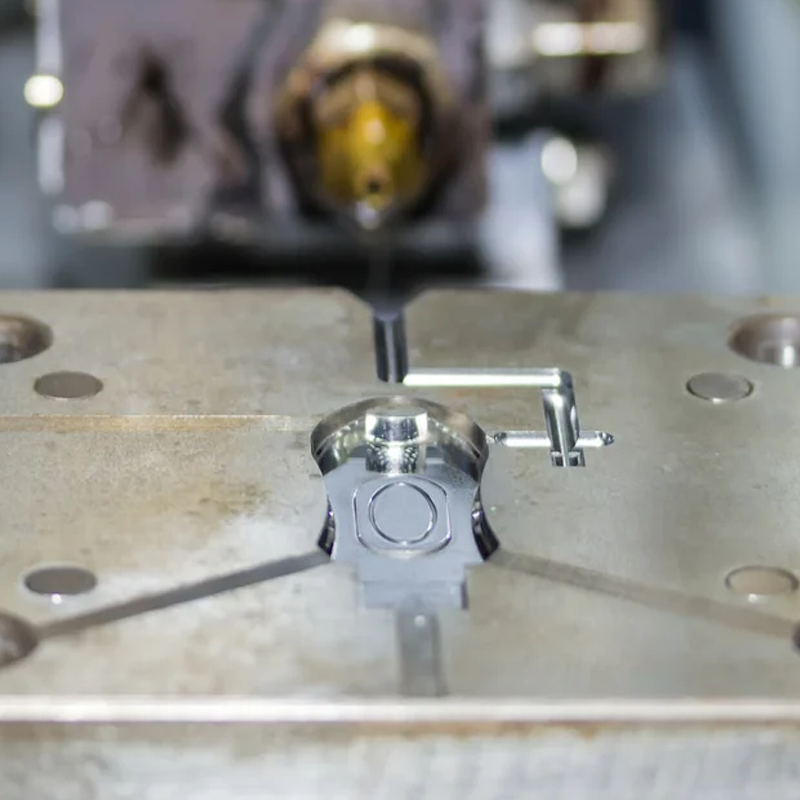

- Gate Selection: Choosing the right gate type and location is essential for efficient material flow. For cold runner systems, pin, submarine, or automatic gate designs are common. The gate should be placed in a location where the material fills the mold cavity evenly without leaving visible marks or defects on the part.
- Demolding Process: LSR’s high green tear strength allows for large undercuts, but careful design is necessary to ensure that parts can be easily removed from the mold without distortion. Effective demolding requires both the right design and tooling to avoid tearing, sticking, or damage during the removal process.
At Colosilicone, we use state-of-the-art injection molding machines that incorporate advanced features such as automated part handling and precision control systems to ensure high-quality output with minimal waste.
5. Quality Control: Ensuring Consistent Results
Once the parts are molded, stringent quality control measures are put in place to ensure they meet the required specifications. Colosilicone’s in-house quality control team uses a variety of tests to verify product dimensions, functionality, and durability. Our quality control process includes:

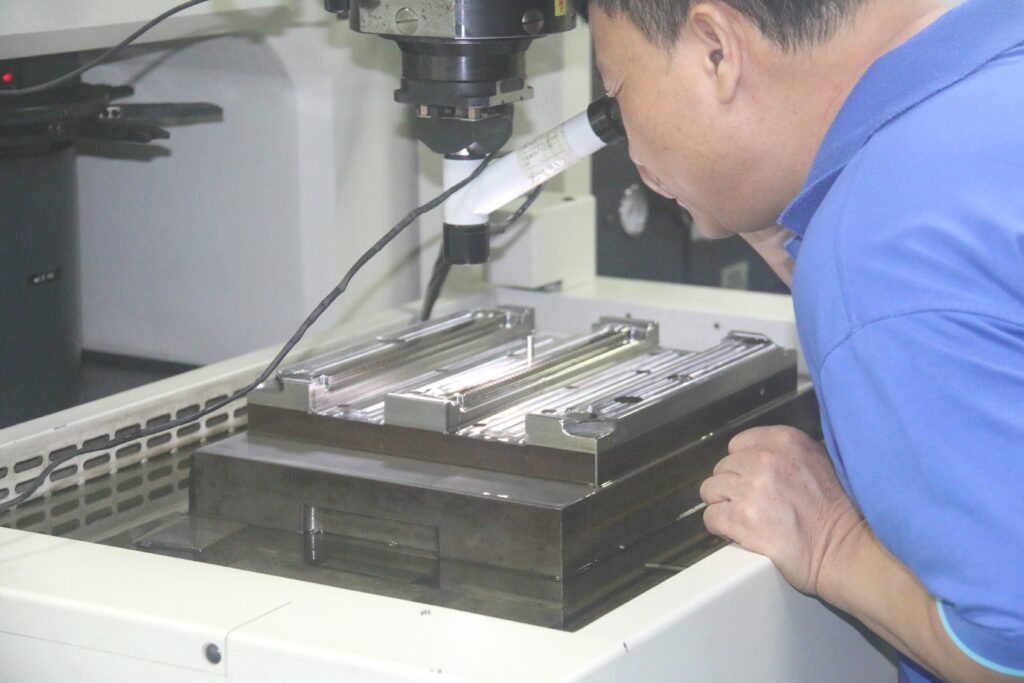

- Dimensional Inspection: Precision measuring tools, such as coordinate measuring machines (CMM), are used to verify that the molded parts meet strict tolerances.
- Functional Testing: We conduct tests to evaluate the part’s mechanical, electrical, and thermal properties, ensuring that the product performs as intended in real-world conditions.
- Visual Inspection: Aesthetic factors such as surface finish and color consistency are also checked to ensure the final product meets customer expectations.
Conclusion
At Colosilicone, we understand that the success of your product relies heavily on the quality of the mold and tooling. From initial design to final production, we ensure that every step of the process is executed with precision and expertise. Our state-of-the-art facilities, combined with our in-house tooling workshop, allow us to provide high-quality LSR molded parts that meet your specific requirements. We work closely with you to ensure that your product not only meets industry standards but exceeds them.
Whether you’re in need of custom LSR tooling for medical devices, automotive parts, or consumer goods, Colosilicone is here to help. Our team is committed to delivering reliable, high-quality products that help you bring your ideas to life efficiently and effectively. Contact us today to discuss your LSR molding needs and discover how our expertise can help you achieve success in your next project.
